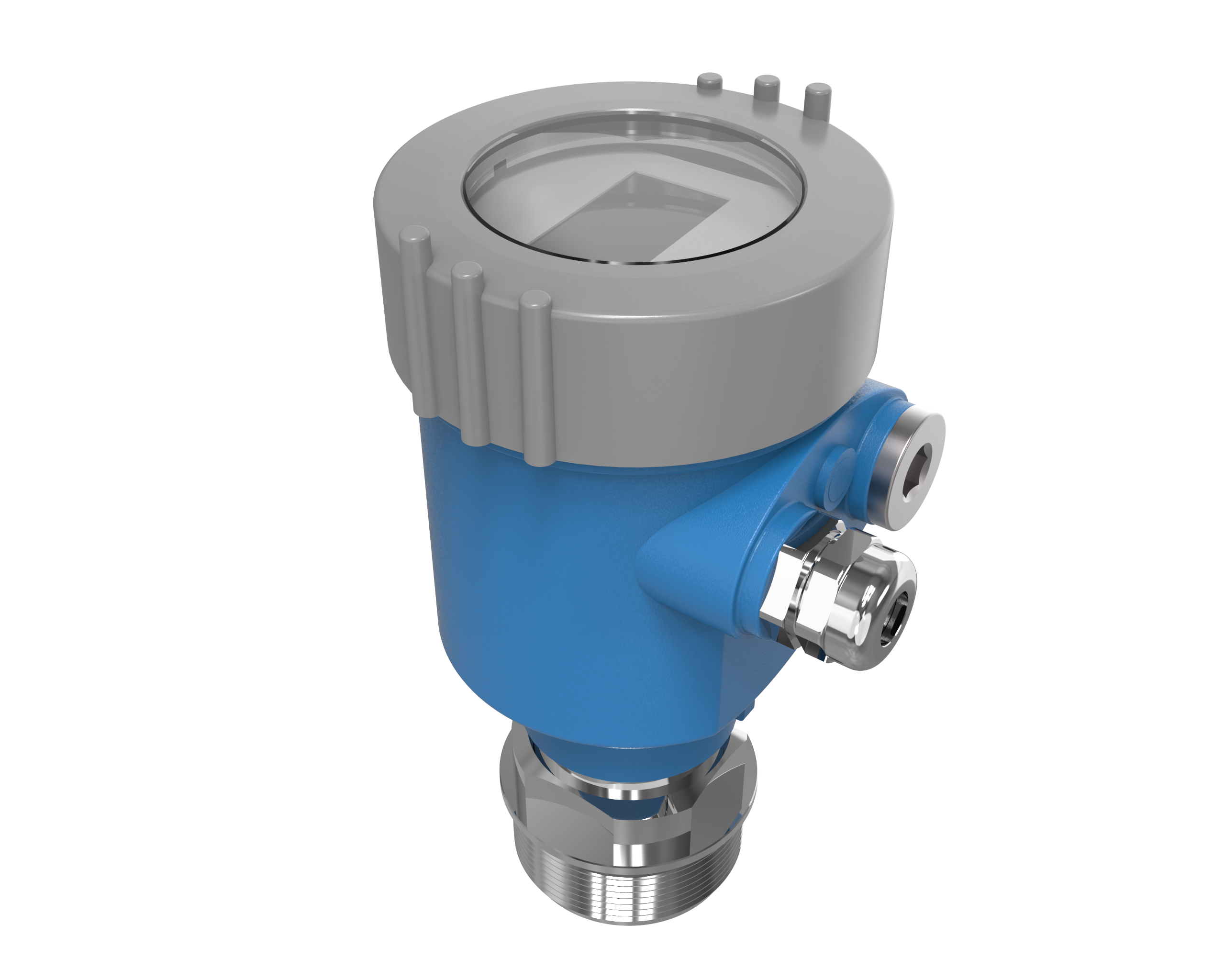

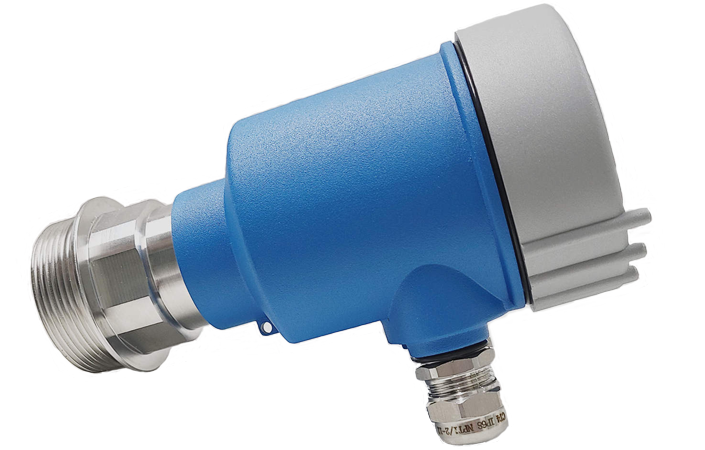

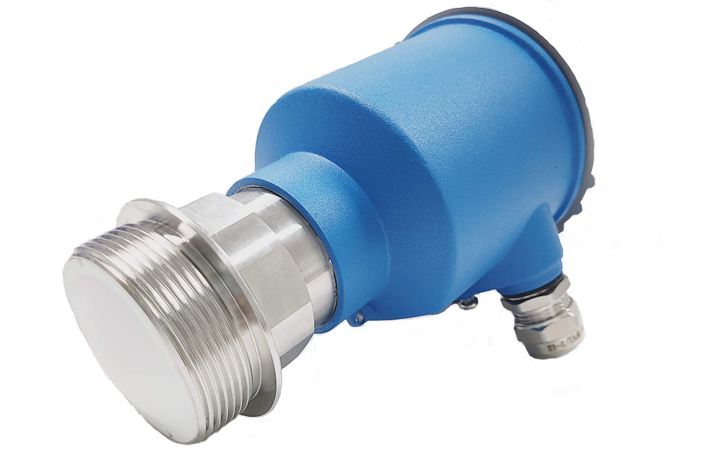

80GHz Radar Level Sensor Transmitter w/ FCC Certification

80GHz radar level measurement, Radar Level Transmitter 4-20mA, Modbus +HART | Sensor de nível para silos de grãos

The industrial 80GHz radar level sensor, high measuring accuracy, wide range and non-contact measurement, can be widely used for level measurement for water, wastewater treatment, chemical, food, oil and other highly corrosive or dusty media. 4-20mA HART 80G Radar Level Sensor.

80GHz radar level sensor level measurement radar transmitter wastewater treatment 80GHz radar level measurement Radar Level Transmitter water level sensor for tank Radar level sensor for tank Diesel Level Sensor Industrial water level transmitter

Consult Configure product Return

Benefit Principle Application area Technical parameters Documentation Industry

Consult now

Frequency Modulation Continuous Wave(FMCW), Strong Adaptability.

FMCW technology.

Suitable for measuring liquids and bulk solids level.

High penetration for high vapor and dust applications.
High Accuracy

Beam angle 3°.

Measurement accuracy up to 1mm.
Easy to Set Up and Debug

Simple commissioning, saves time, no need to fill or empty tanks.

Simple setting , only need to set two parameters to realize the measurement.

Multi-language support (including Chinese), echo display, easy for maintenance personnel to analyze and debug.
Support a Variety of Output Signals

The measurement is not affected by changes in the medium, nor by process conditions such as temperature, pressure, dust, etc.

Support 4～20mA、HART、Modbus , etc.
Not Affected by Environment

Not affected by temperature, pressure, dust and other process conditions.

Suitable for level measurement of water, wastewater treatment, chemical, food, oil and other highly corrosive and toxic media.

Principle

Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of an 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.

The radar level sensor, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance, high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust, and other effects.

Application area

For tanks

Mounting point needs to be from the top of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (such as transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured. Best water level sensor for tank.
For medium

Various solids and liquids with a dielectric constant greater than 2

Ambient temperature

-20℃～+80℃

Ambient humidity

（0%～95%）RH

Explosion-proof mark

ExdIICT6

Protection level

IP67

For tanks

Mounting point needs to be from the top of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (such as transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured. Best water level sensor for tank.
