Portable Ultrasonic Liquid Level Sensor Transmitter

Handheld measurement of liquid level indicator in a closed container

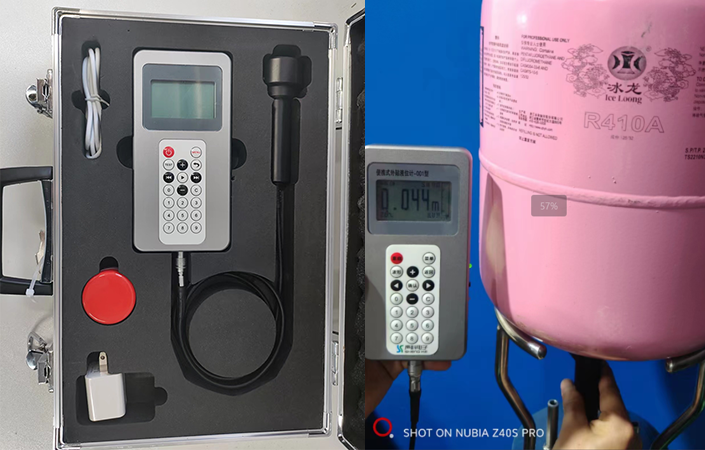

SKE portable level transmitter is designed to offer a simple, accurate, rapid, and reliable method of Liquid level measurement. When the magnetic probe is bonded to the bottom shell of the tank, an ultrasonic sound wave travels through the tank and reflects back from the media surface. The system calculates the height of the liquid, from the time taken for the signal to be received. It features a truly non-invasive sensing technique.

Portable Ultrasonic Level Transmitter portable level sensor portable level gauge ultrasonic level sensor

Consult Configure product Return

Benefit Principle Application area Technical parameters Documentation Industry

Consult now

Non-contact measurement

Complete the liquid level measurement by the magnetic probe on the bottom of the storage tank.

Non-contact measurement, simple and convenient measurement.

lower measurement blind zone, ideal working condition, the blind zone can reach 30mm.

Resistant to precipitation, even if there is a large amount of precipitation, it will not affect the measurement.
High Measurement Accuracy

Absolute measurement accuracy up to 1cm.

Real-time measurement of tank temperature, temperature compensation.

Automatically identify false echo interference to avoid outputting wrong results.
Portable Gauge

No couplant, easy to operate.

Built-in lithium battery.

7x24 hours of free telephone after-sales support

Principle

The ultrasonic wave signal is emitted from the probe sensor, and the echo signal is detected after being reflected form the liquid surface.
The signal is processed by the SKE algorithm then calculate the time “t”, and the system calculates the liquid level according to the formula:

H: The height of the liquid level
t: The time taken by the sonar wave from launch to return
tg: The transmission time of the ultrasonic wave in the tank wall
v: The speed of ultrasonic wave propagating in liquid
α: Correction factor

Application area

For tanks

The probe is mounted directly below the vessel.
Tank wall without lining or gas interlayer.
there is no solid obstruction (such as coils, partitions, leaky plates, etc.) between directly above the probe and the liquid surface.
The tank wall is made of hard materials, such as various hard metals, glass fiber reinforced plastics, hard plastics, hard rubber, etc.
For medium

The dynamic viscosity of the tested liquid is less than 10mPa·S
The liquid has no large amount of precipitation and crystallization, and no dense bubbles inside

Tank temperature

-45℃~80℃

Process temperature

-20℃~70℃

Environment humidity

(0%～95%)RH

For tanks

The probe is mounted directly below the vessel.
Tank wall without lining or gas interlayer.
there is no solid obstruction (such as coils, partitions, leaky plates, etc.) between directly above the probe and the liquid surface.
The tank wall is made of hard materials, such as various hard metals, glass fiber reinforced plastics, hard plastics, hard rubber, etc.

For medium

The dynamic viscosity of the tested liquid is less than 10mPa·S
The liquid has no large amount of precipitation and crystallization, and no dense bubbles inside

Tank temperature

-45℃~80℃

Process temperature

-20℃~70℃

Environment humidity

(0%～95%)RH

Technical parameters

Max measure ragne

6m
Measuring error

≤10mm
Display Resolution

1mm
Display

128×64LCD
Dead Zone

Ideal working condition, Dead zone is 3cm, the specific value depends on the complexity of the working condition
Temperature measurement range

-45℃～+80℃
Accuracy of temperature measurement

1℃
Power

＜ 0.5W
Power Supply

3.7 Vlithium battery
Charging Time

＜ 3 hours
Continuous Working Hours

＞ 12 Hours
Mainframe Environment Temperature

-20℃～+70℃
Environmental Humidity

（0%～95%）RH
Weight

370g
Dimension

Lenth 160mm×Width80mm×Height26mm
